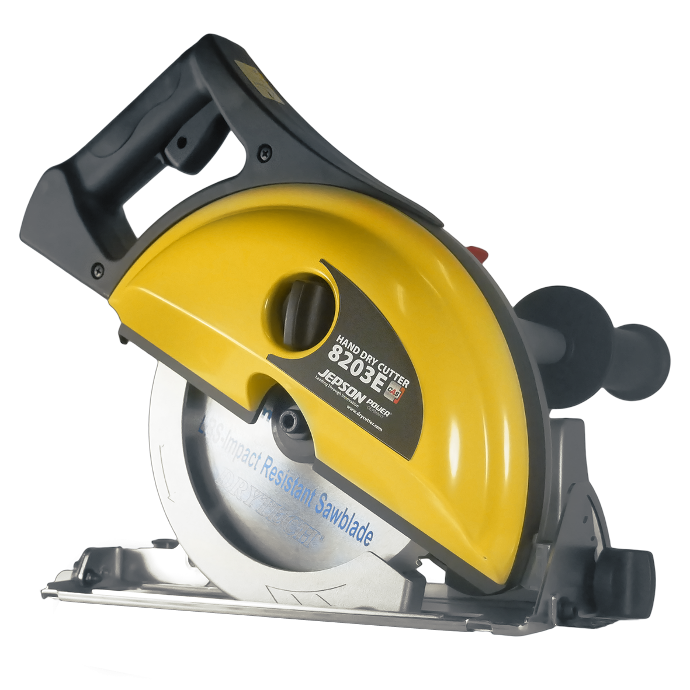

HAND DRY CUTTER 8203E

CORDLESS METAL CIRCULAR SAW with Ø 203mm / 48T saw blade for metal grids & sheets, pipes & profiles, sandwich panels


SCOPE OF DELIVERY (608295E)

HAND DRY CUTTER 8203E
CORDLESS METAL CUTTING CIRCULAR SAW

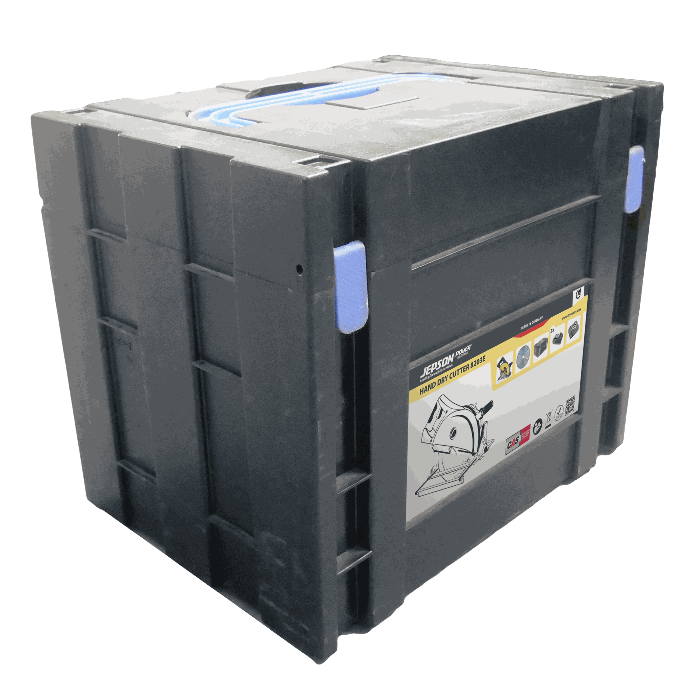

Carry case

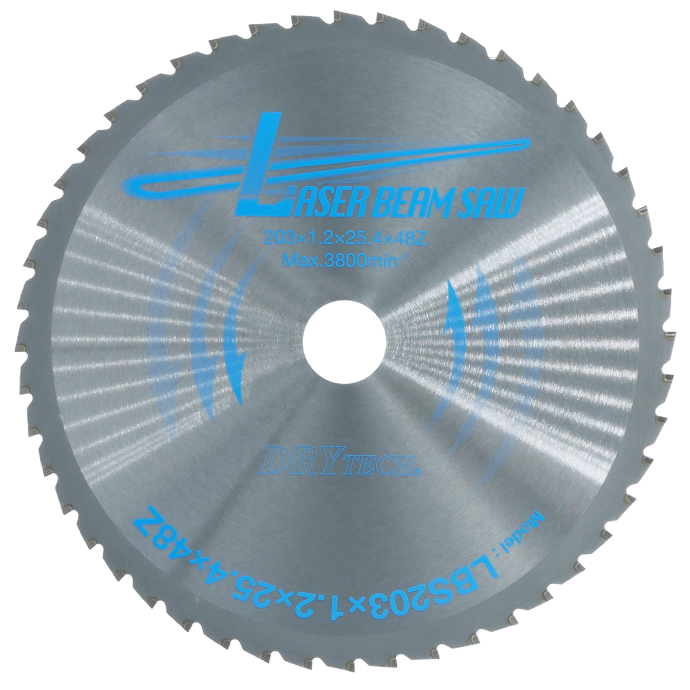

Ø 203mm/48T carbide-tipped "LBS impact resistant" saw blade

2x High-performance 18V LiHD 5,5A batteries

Air-Cooled LiHD quick-charger
Cordless metal circular saw by Jepson Power for quick and burr-free sawing of sheet metal, grids, sandwich panels etc. without coolant.

There is no need for lubricants thanks to our
DRY CUT TECHNOLOGY

  • MADE IN GERMANY
  • Ideal for cutting steel, metal sheet, sandwich panels, metal plates, tubes and profiles made of steel, non-ferrous materials and composites
  • Equipped with a Ø 8"/48T carbide-tipped "LBS impact resistant" saw blade for maximum service life and quality
  • 67 mm cutting depth
  • Very long battery life thanks to the ultra-thin-walled, energy-efficient LBS saw blade
  • Chip collector for clean work

Voltage18 V
Idle speed3.500 min-1
Net weight 5,4 kg
Saw blade Ø  203 mm
Sound pressure  87,3 db(A)
Vibration ah = 2,05
Reference608295E





DATA SHEETS


OUR RANGE OF TCT SAW BLADES FOR THE HDC 8203E

FEATURES


CAS-Battery-technology

CAS = Cordless Alliance System


Ultra thin-walled LBS saw blade

Blade wall-thickness of 0,94 mm to minimize friction and maximize energy efficiency


For steel, sheet steel, sandwich panels, metal plates, steel tubes and profiles, non-ferrous materials and composites


Ideal for steel mesh and sheets with LBS "impact resistant" saw blade

Maximum capacity in mm

Material
square
rectangular
round
plane
90° cut
67 x 6
 67 x 67 x  6
 67 x 6
 10
45° cut (bevel)
42 x 4
 42 x 42 x 4
 42 x 4
 8

ACCESSORIES (OPTIONAL)


 Description Reference E-Shop

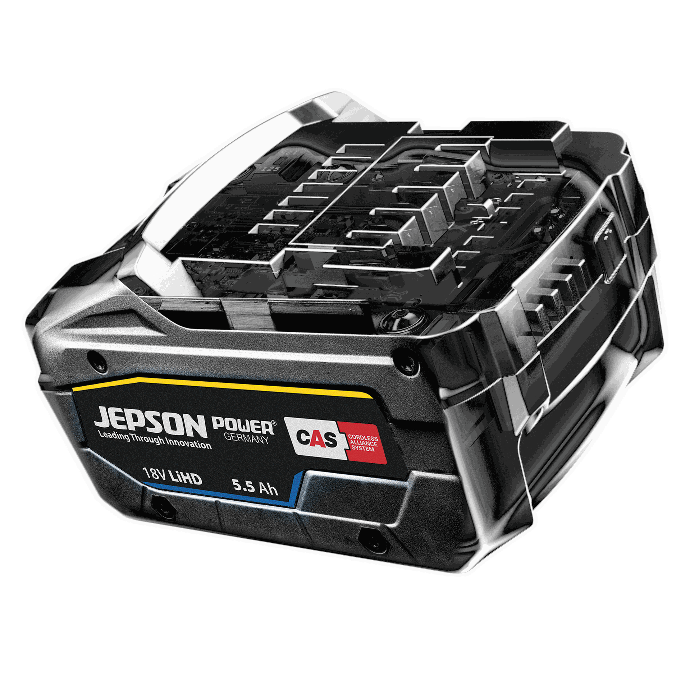

  2x High-performance 18V LiHD 5,5A Batteries

 608295EB

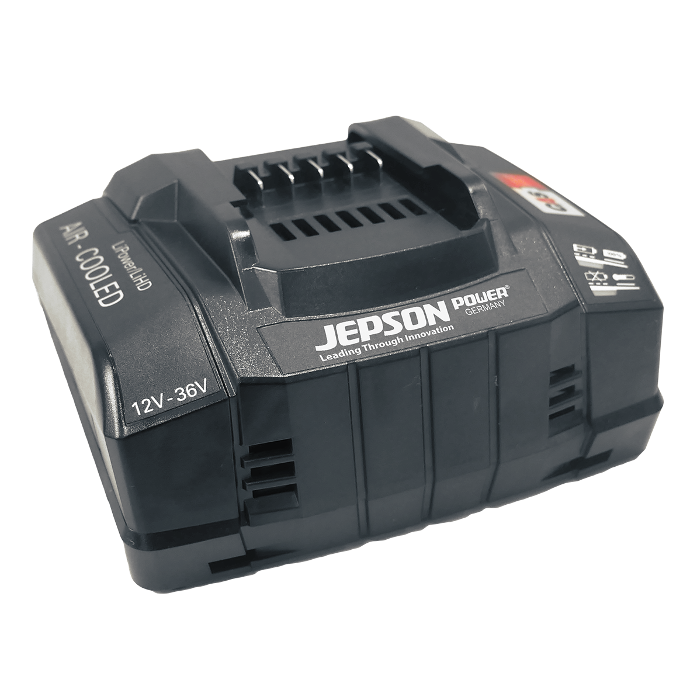

Air-Cooled LiHD Quick-charger
 608295EC2

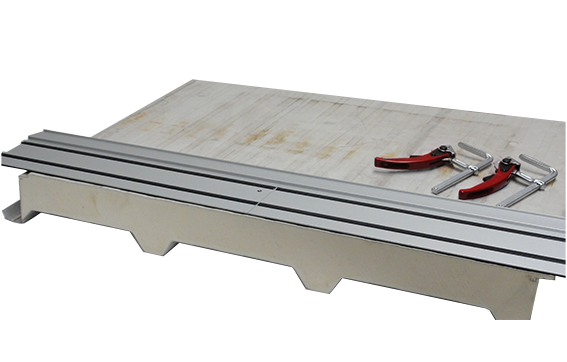

Guide Rail 1.400 mm

608275SET

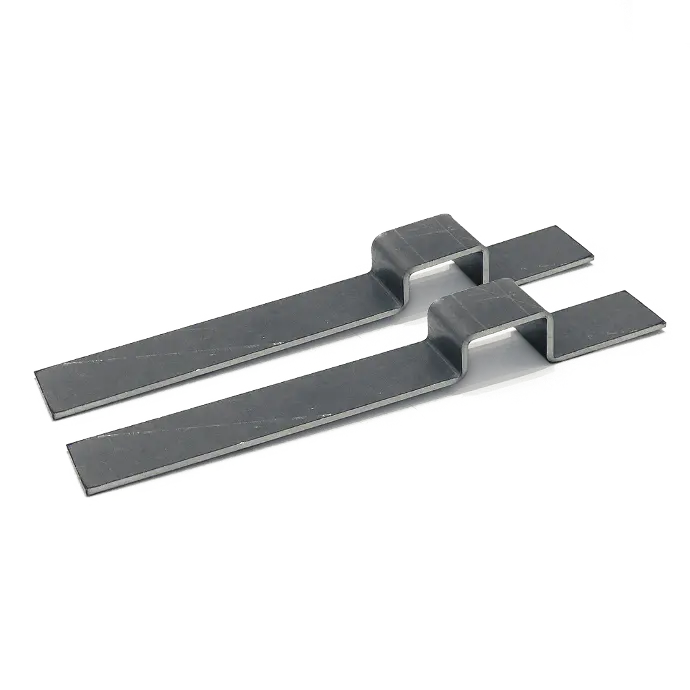

2x Adapter for guide rail 608275SET



608275A
SAW BLADES

DRYTECH® TCT saw blades Ø203mm for  HDC 8203E
 Fast and burr-free cutting of metal without cooling

  HDC 8203E

ADVANTAGES OF OUR DRYTECH® SAW BLADES:

  • Universal use on all circular saws and cut-off saws
  • Very high durability
  • Excellent cutting quality
  • Thin walled with reduced noise
  • Resharpenable
 LBS- IMPACT RESISTANT
 STAINLESS STEEL
Saw blade Application Ø [mm] Cutting width [mm] Blade width [mm] Teeth Reference E-Shop

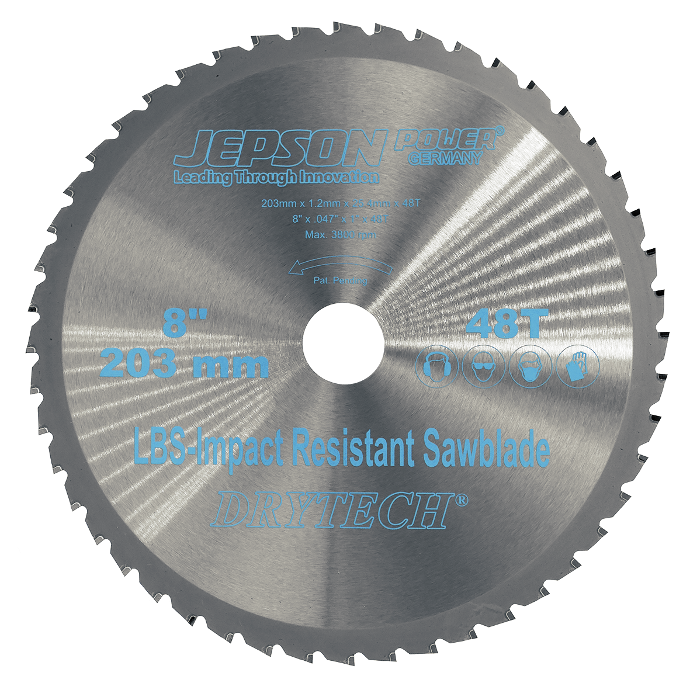

LBS - IMPACT RESISTANT
LEARN MORE
thin-walled steel,
composite materials, Sandwich panels		 203 1,2 0,94 48 72220348

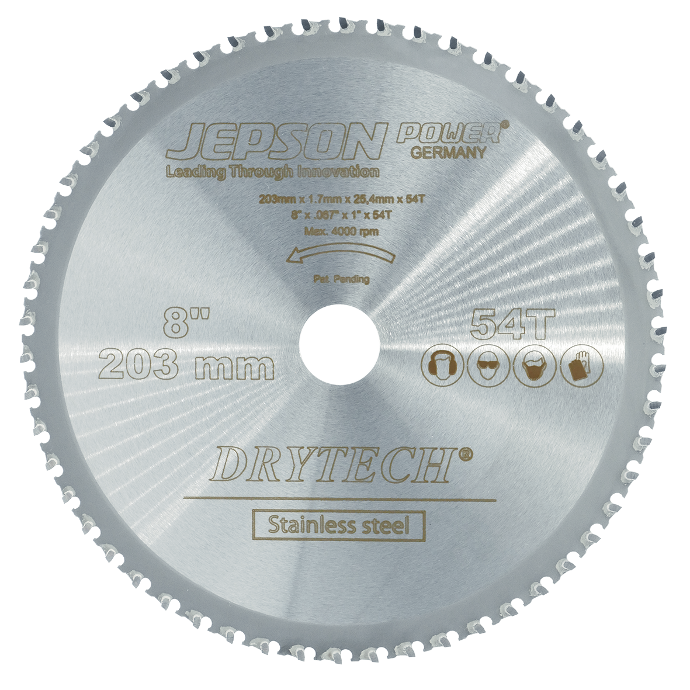

INOX
 LEARN MORE 		Stainless steel, steel 203 1,7 1,4 54 72120354I
