HAND DRY CUTTER 8230N
METAL CUTTING CIRCULAR SAW with Ø 230mm / 48T blade for STAINLESS STEEL
The Hand Dry Cutter 8230N is ideal for cutting metal sheets, sandwich panels, trapezoidal sheets, steel pipes & profiles, nonferrous metals and composite materials.
No lubrication needed thanks to our DryCutting technology
Integrated chip collector for a clean and safe cutting process.
Maximum cutting depth 82 mm (56 mm for bevel cuts) and maximum thickness 10 mm.
Delivery includes 230 mm / 48T saw blade for stainless steel
No lubrication needed thanks to our DryCutting technology
Integrated chip collector for a clean and safe cutting process.
Maximum cutting depth 82 mm (56 mm for bevel cuts) and maximum thickness 10 mm.
Delivery includes 230 mm / 48T saw blade for stainless steel
|
Power input | 1.700 W |
|
Voltage |
230V/50Hz or 115V/60Hz
|
|
No load speed | 2.200 min-1 |
|
Net weight | 7,1 kg |
|
Blade size | 230 mm |
|
Noise level | 88,5 db(A) |
|
Vibration | 1,0 m/s² |
|
Cable length | 5 m |
|
Ref. |
608280I
|
DATA SHEETS & SPARE PARTS
Maximum cutting capacities in mm
|
Material
|
Cutting depth |
Square |
Rectangular |
Round |
Plane |
|
90° cut
|
82
|
82 x 6
|
82 x 6
|
82 x 6
|
10
|
|
45° cut
|
56
|
56 x 4
|
56 x 4
|
56 x 4
|
8
|
ACCESSORIES & SETS
| ACCESSORIES | Description | Reference | E-Shop |
  |

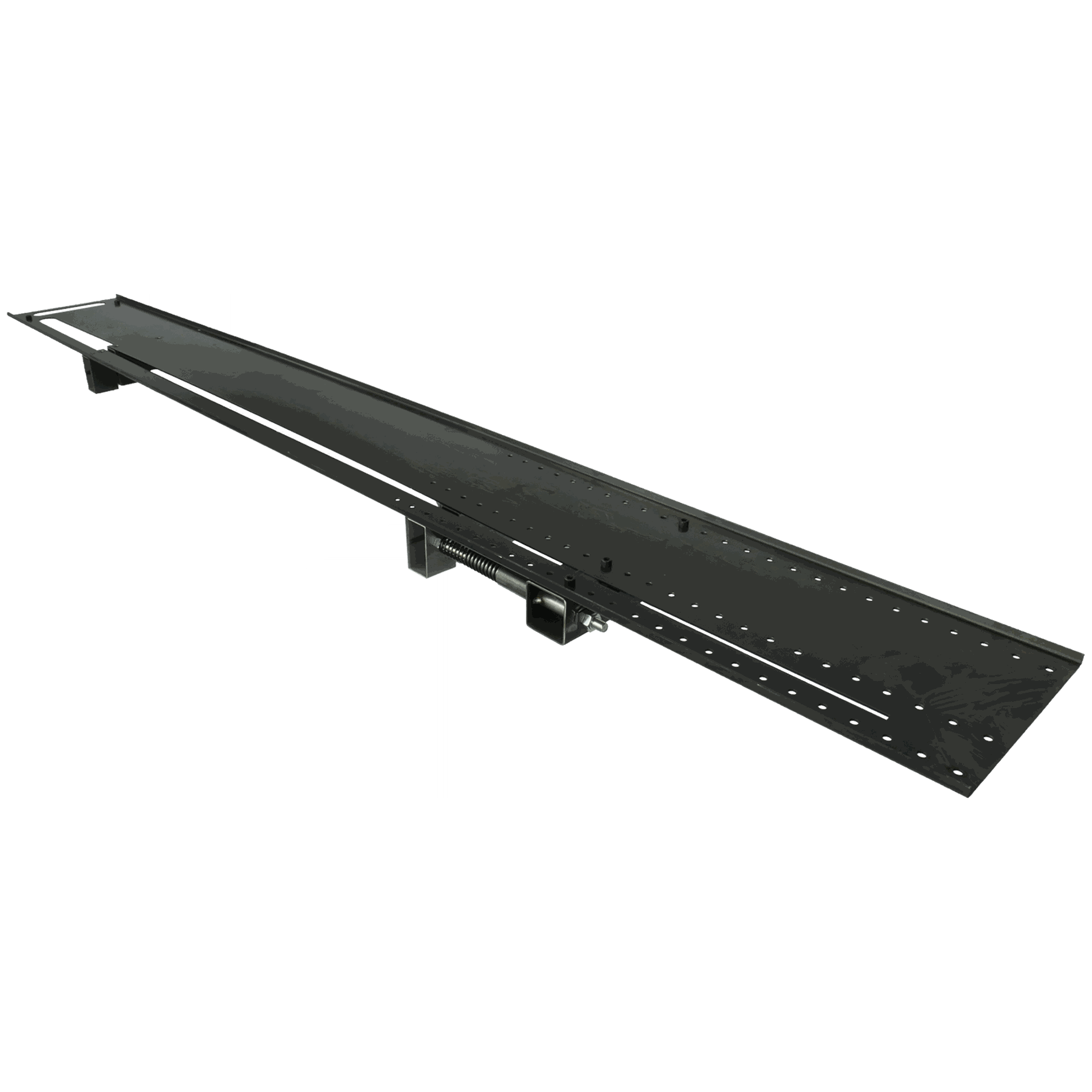

Adjustable cutting guide rail with integrated clamping system
Ideal for clean and straight cutting of metal grids, sandwich panels, multiple profiles, metal pipes and other materials.
|
608284
|
|
|

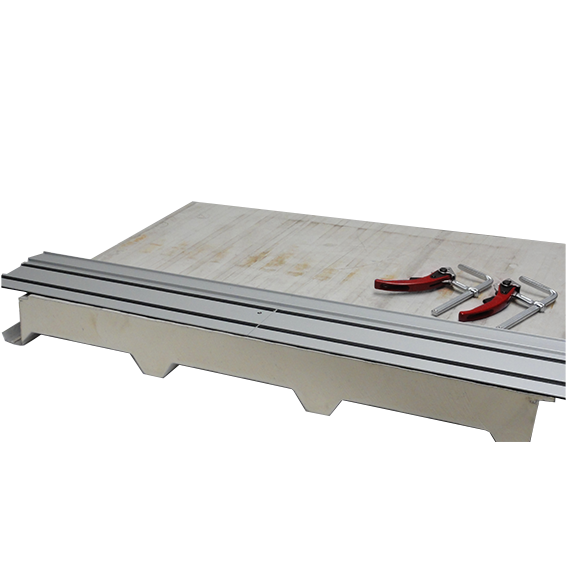

Guide rail 1,400mm with 2 C-clamps. • Ideal for clean and straight cutting of sandwich panels, sheet metal and metal gratings. • Tool-free fixation of the materials to be sawn. • Safe and tilt-free guidance of the saw blade through the material. The rail reduces the machines cutting depth by 2 mm. Bevel cut only without rail. |
608275SET |
|
SETS
|
SET
|
Hand Dry Cutter 8230N + case with
|
Reference |
E-Shop
|
|
|
Ø 230 / 48T saw blade for stainless steel (standard)
|
608280I
|
|
+
+
|
Ø 230 / 48T saw blade + adjustable cutting guide rail with integrated clamping system (for 90° cuts only)
|
608280ICG
|
|
+
|
Ø 230 / 60T LBS-IMPACT RESISTANT saw blade
|
608280LBS
|
|
+
+
|
Ø 230 / 60T LBS-IMPACT RESISTANT saw blade + adjustable cutting guide rail with integrated clamping system (for 90° cuts only) |
608280LCG
|
|
SAW BLADES
DRYTECH®
Hartmetallsägeblätter
Ø230mm für
HDC 8230N
Schnelles und gratarmes Sägen von Metall ohne Kühlung
HDC 8230N
ADVANTAGES OF OUR DRYTECH®
SAW BLADES:
-
Universal use on all circular saws and cut-off saws
-
Very high durability
-
Excellent cutting quality
-
Thin walled with reduced noise
-
Resharpenable
| Saw blade | Application | Ø [mm] | Cuttin width [mm] | Blade width [mm] | Teeth | Reference | E-Shop |
| STANDARD | Stainless - & steel | 230 | 2 | 1,8 | 48 | 72123048I | |
|
SPECIAL-COATED |
Stainless steel, steel, composite-materials, Food & Construction | 230 | 2 | 1,8 | 48 | 72123048NSF | |
| LBS IMPACT RESISTANT | Metal grids & grates | 230 | 1,4 | 1,2 | 60 | 72223060 | |
| FOR STEEL | Steel | 230 | 2 | 1,8 | 48 | 72123048 | |
| FOR THIN WALLED STEEL | Steel - thin walled | 230 | 2 | 1,8 | 68 | 72123068 | |
| FOR EXTRA THIN WALLED STEEL | Steel - extra thin walled | 230 | 2 | 1,8 | 84 | 72123084 |
