MAGPRO 50/2S Adjust
Core drilling up to Ø 50 mm with large stroke and 2 speeds
-
Kernbohren bis Ø 50 mm
-
Huge stroke 85 - 230 mm
-
2 speeds
-
Quick release
-
Core drilling - Twist drilling
-
Overload protection
-
Delivery in suitcase with quick release, safety chain and maintenance tools
|
Power input |
1.100 W
|
|
Voltage |
230V/50Hz
|
|
Magnetic adhesion |
17.000N |
|
Net weight |
15 kg |
|
Art.- Nr. |
490170 2
|
DATA SHEETS & SPARE PARTS
Technical Data
| No load / Full load) |
300 / 180 rpm 450 / 170 rpm |
|
Shank
|
Weldon 19 mm
|
|
Max. Ø core drills x L |
12 - 50 x 110 mm
|
|
Max. Ø twist drills x L |
13 x 140 mm
|
|
Stroke |
85 mm for normal core drills, up to 230 mm for twist drills (with adapter and stroke) |
|
Magnetic surface |
175 x 90 mm
|
|
Cooling system |
integrated, automatic
|
Accesorries
|
Product
|
Description |
Ref. |
E-Shop
|
|
Core drill set 30 mm Ø 12, 14, 16, 18, 20, 22 mm with pilot pin |
490145
|
|
|
Drill chuck and adapter 13 mm
|
490152A
|
|
|
Adapter with Weldon shank 19 mm (3/4“) for Fein core drills with Quick-in shank including 1 ejector pin
|
490154
|
|
|

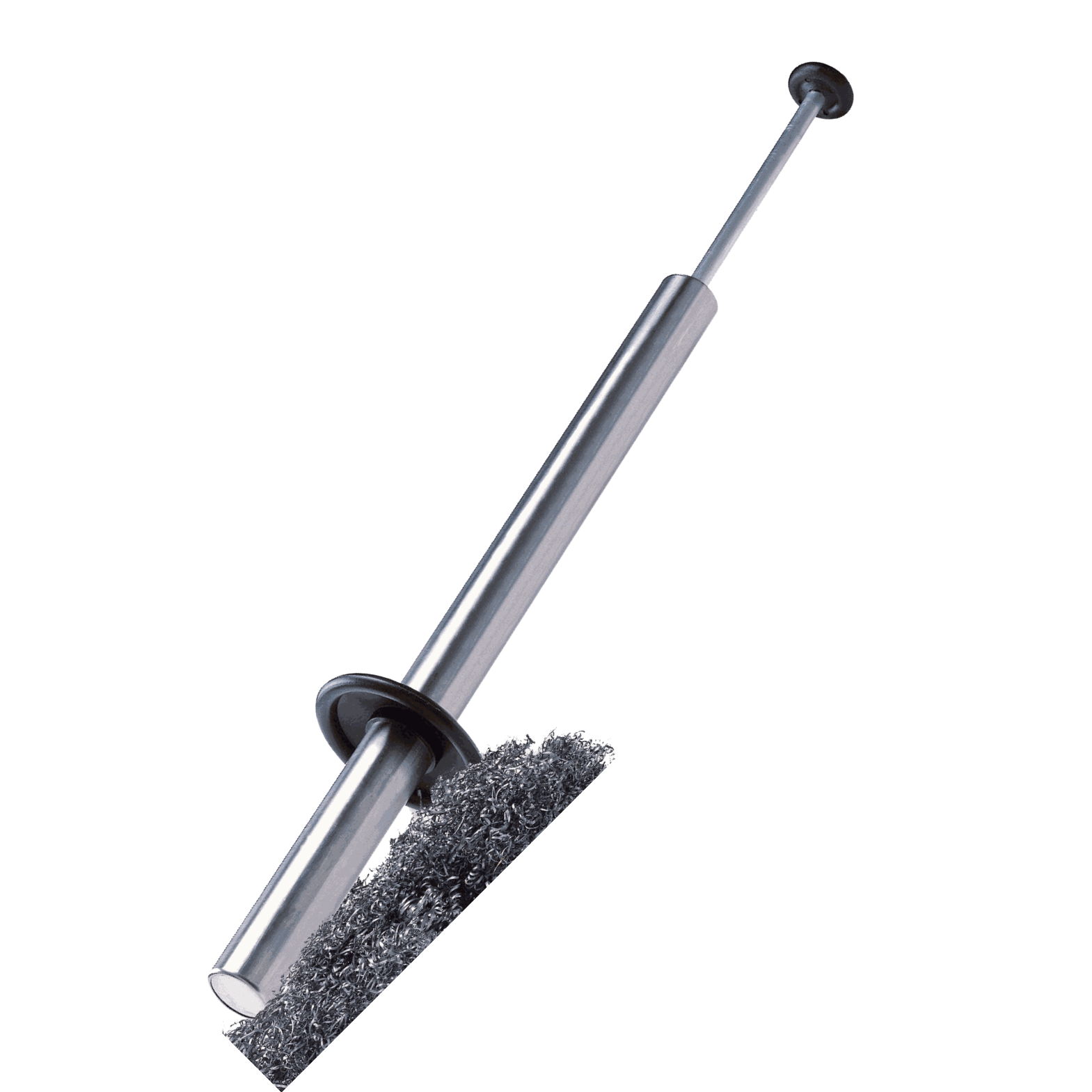

Magnetic chip collector |
490153
|
|
|
High Performance Cutting Oil Spray for optimal cooling and higher cutting performance (400 ml) |
490020
|
|
| Pipe clamping system for pipes Ø 150 - 500 mm Flexible and fast clamping in every drilling situation for pipes up to Ø 500 mm |
490010 |
