MAGPRO 75/4S Swivel Base
Magnetic core drill with adjustable magnetic base and 4 speeds
-
Der verstellbare Magnetfuß erlaubt eine präzise Positionierung der Kern-, Gewinde- und Vollbohrer. Die Maschine kann 15 Grad nach links und rechts schwenken, sowie 20 mm vorwärts.
-
Kernbohren bis Ø 75 mm
-
Twist drilling up to Ø 32 mm
-
Tapping from M3 up to M22
-
integrated cooling system
-
Delivery in suitcase with safety chain, maintenance tools and MT3/19 mm adapter
|
Power input |
1.800 W
|
|
Voltage |
230V/50Hz
|
|
Magnetic adhesion |
32.000N |
|
Net weight |
27 kg |
| Ref. |
490160 S |
DATA SHEETS & SPARE PARTS
Technical Data
|
4 Speeds (no load / full load) |
1: 210 /120 rpm 2: 270 / 160 rpm 3: 410 / 290 rpm 4: 530 / 310 rpm |
|
Shank |
19/32 mm Weldon, MK3
|
|
Max. Ø core drills x L |
12 - 75 mm x 75 mm
|
|
Max. Ø twist drills x L |
16 x 110 mm |
| Max. depth x Ø |
75 x 75 mm
|
|
Stroke |
100 mm
|
|
Magnetic surface |
200 x 100 mm
|
|
Cooling system |
integrated, automatic |
ACCESSORIES
|
Product |
Description
|
Ref. |
E-Shop
|
|

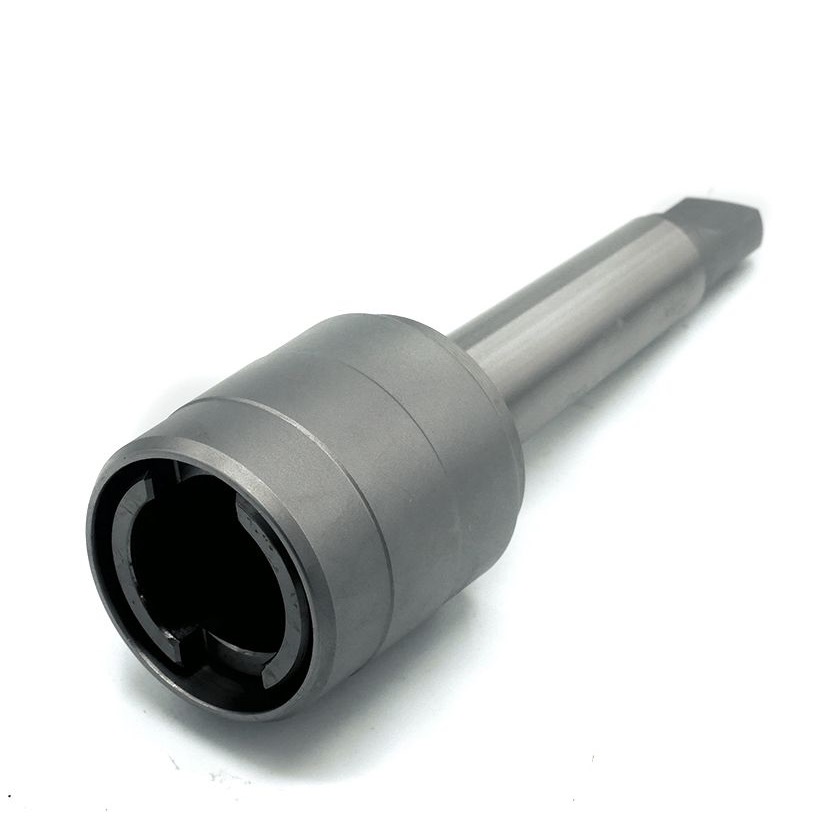

MT3 Quick change adapter for thread cutter shank M3-M14 |
490162
|
|
|

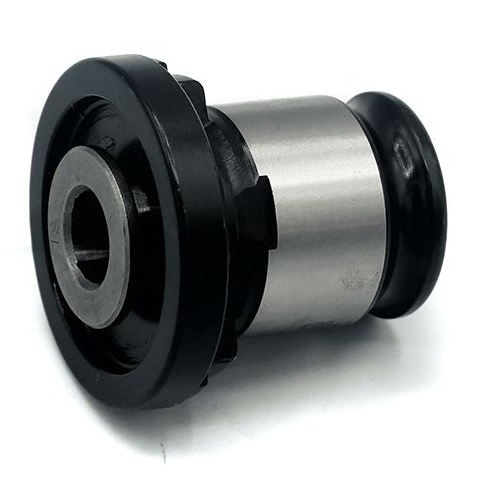

Quick change inserts M3-M14 (single) |
490162 M3-14
|
|
|

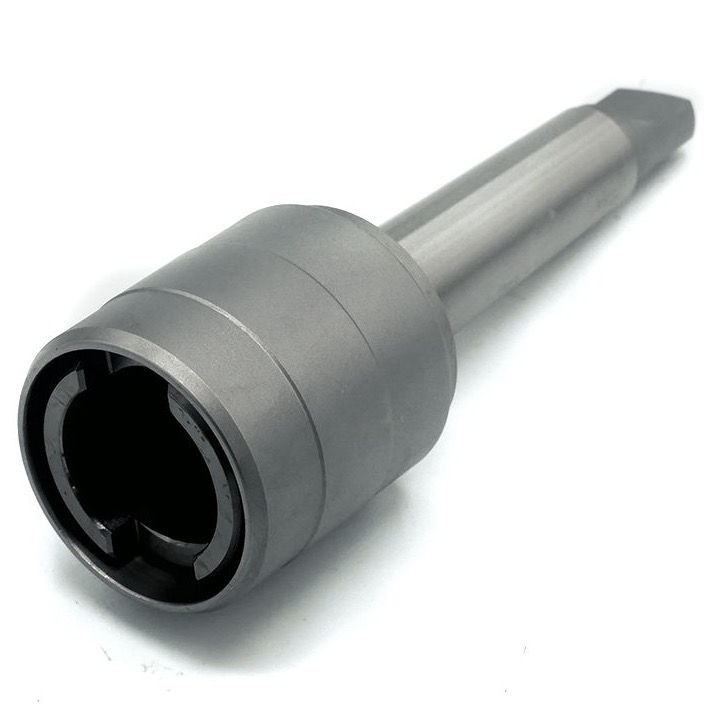

MT3 Quick change adapter for thread cutter shank M5-M22 |
490165
|
|
|

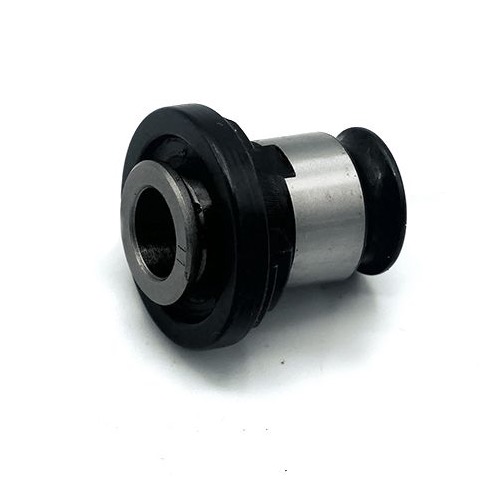

Quick change inserts M5-M22 (single)M5-M22 (single) |
490165 M5-22 |
|
|
Weldon 32/MT3 shank for core drills from Ø 61 mm
|
490163
|
|
|

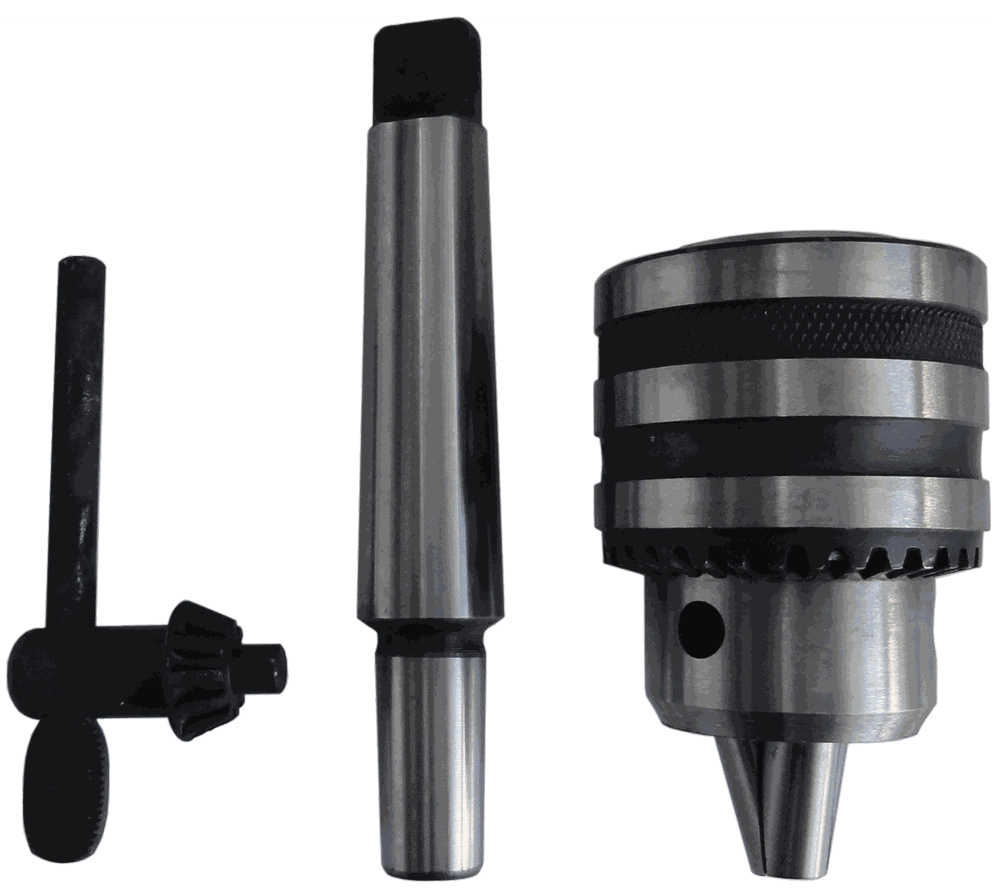

Drill chuck 16 mm and adapter
|
490164
|
|
|
Core drill set 30 mm Ø 12, 14, 16, 18, 20, 22 mm with pilot pin |
490145
|
|
|
Magnetic chip collector |
490153
|
|
|
High-performance drilling and cutting oil spray for optimal cooling and higher cutting performance (400 ml) |
490020
|
|
| Pipe clamping system for pipes Ø 150 - 500 mm Flexible and fast clamping in every drilling situation for pipes up to Ø 500 mm |
490010BIG |
